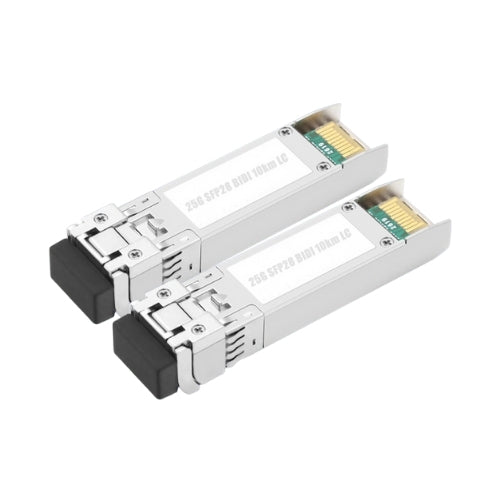

OPCSUN 25G SFP28 Optical Transceiver BiDi

Description

The 25G SFP28 optical transceiver module has low power consumption, high density and can save network deployment cost. It is mainly used for interconnecting servers and switches in data centers to maximize bandwidth and density, delivering 100GB data transmission at 25Gbps. single channel. SFP28 optical transceiver modules are widely used in 25G Ethernet and 100G (4x25Gbps) Ethernet and can provide the most energy-saving way to meet the growing demands of next-generation data center networks.

Feature

• Supports 25Gbps data rate
• Maximum link length 10km
• Single LC receptacle bidirectional
• CWDM DFB laser and PIN photodetector
• Internal CDR for both transmitter and receiver channels
• Hot-pluggable SFP28 form factor
• 3.3V single power supply
• Power consumption<1.2W
• Digital diagnostics via I2C interface
• Operating case temperature: 0-70°C
• RoHS compliant and lead-free
